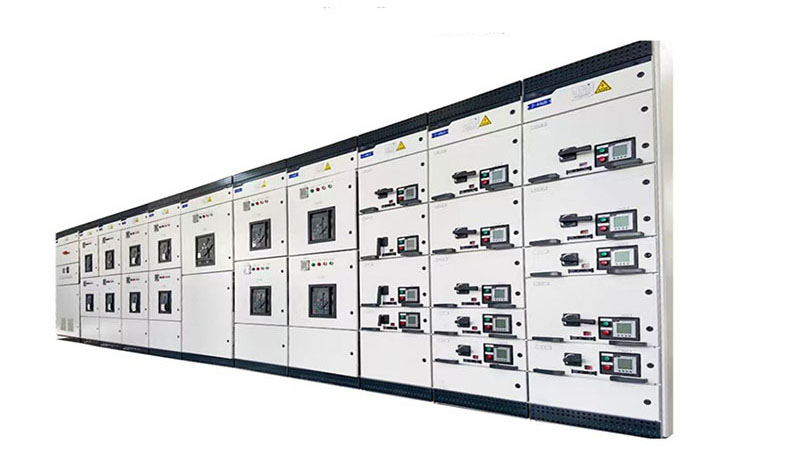

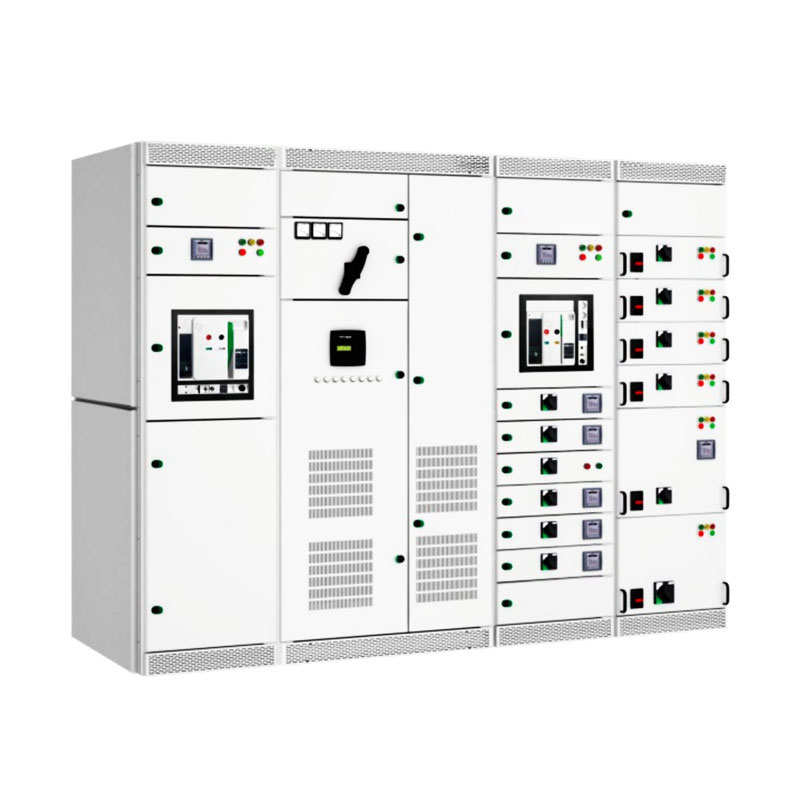

GCK-Low Voltage Cabinet

Product Overview

The GCK-Low Voltage Cabinet features a modular design, standard components, and easy maintenance. Its outstanding performance and reliable quality have earned full recognition from users. The outer shell of the cabinet is coated with epoxy resin powder, and the metal structural components installed inside are coated with aluminum-zinc plate. This ensures reliable grounding of the metal parts inside the cabinet and ensures the safety of operators. The aluminum-zinc plate has strong corrosion resistance and a service life of up to 25 years.

The basic framework of the GCK low-voltage cabinet is assembled from standard prefabricated components and can be assembled into frames of different sizes. The cabinet width is flexible and variable, achieving optimal on-site space utilization. The outgoing circuit can be installed in a fixed or drawer style to meet the high reliability requirements of low-voltage complete equipment.

GCK low-voltage cabinets are tailored to market demands and customer usage habits, with performance covering various fields such as construction, industry, energy, and infrastructure, representing the international leading level of low-voltage complete equipment. Different shell protection levels can be provided according to requirements. The cabinet shell is made of epoxy resin powder that has not been sprayed. All non-charged parts of the metal structure are reliably grounded and have clear grounding signs to ensure the safety of operators.

The basic framework of the GCK low-voltage cabinet is assembled from standard prefabricated components, which come in various specifications and can be assembled into frames of different sizes. High levels of reliability and safety enhance the protection of personal and equipment safety.

Global Technological Innovation

1.Full Range of Solutions: Low-voltage complete sets of equipment that meet high reliability requirements, including distribution and motor control. A multifunctional modular system with standardized components is easy to replace.

2.High Reliability and Quality: The modular design can rationalize installation costs, ensure the continuity of power supply, and ensure the durability of the system. It is a reliable product verified through type testing. High-quality switchgear that meets international and domestic standards.

Product Features

1.Auxiliary Equipment: Equipment used for measurement, protection, and control can be located above or below the incoming unit as required. It can also be installed on the panel of the distribution circuit.

2.Fixed Partition Structure: Simple and reliable structure with various interlocks that are easy to implement.

3.Fixed Wiring: Higher electrical connection quality. The connection between the functional unit and the distribution busbar adopts a bolt connection method, and the pressure applied at the bolt connection point can be controlled by tightening torque to achieve the best connection effect.

4.Complete Separation Scheme (Form 1/2b/3b/4): Strictly distinguishes the internal structure of the cabinet into component area, busbar area, wiring area, and instrument area, with metal partitions used for isolation between each area. A good separation pattern minimizes personal injury to the greatest extent possible and avoids mutual influence between circuits.

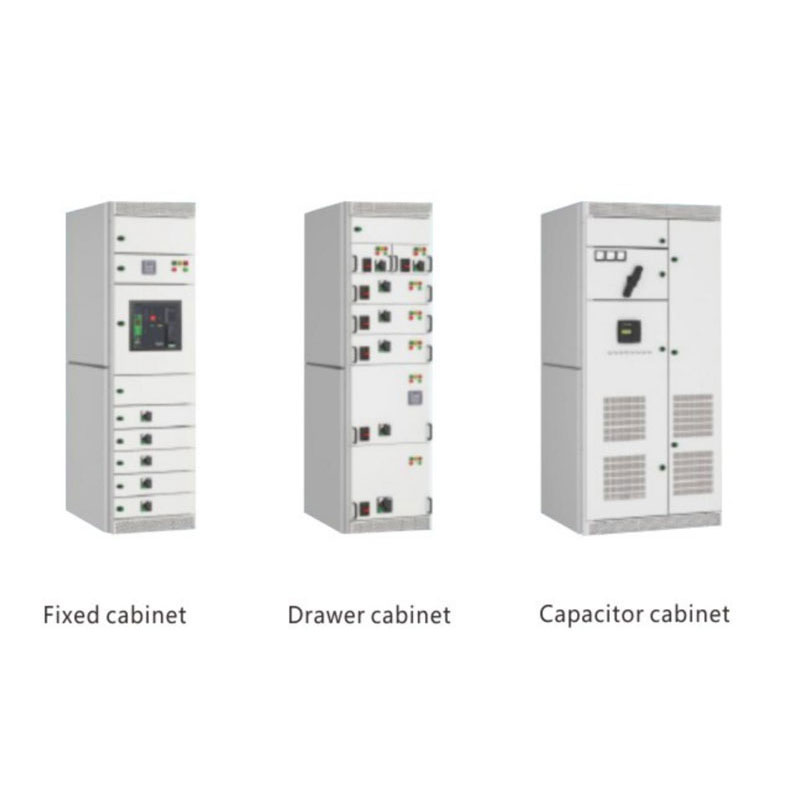

5.Flexible Cabinet Width: The cabinet width is flexible and variable, achieving optimal on-site space utilization. Fixed, plug-in, or withdrawable circuit breakers can be installed to meet the requirements of real-time maintenance.
