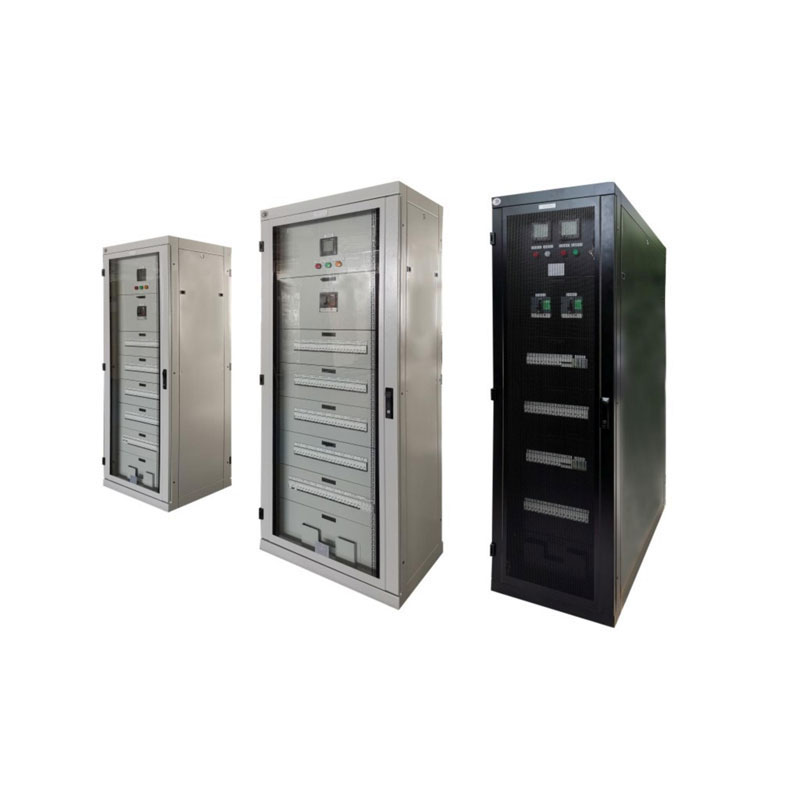

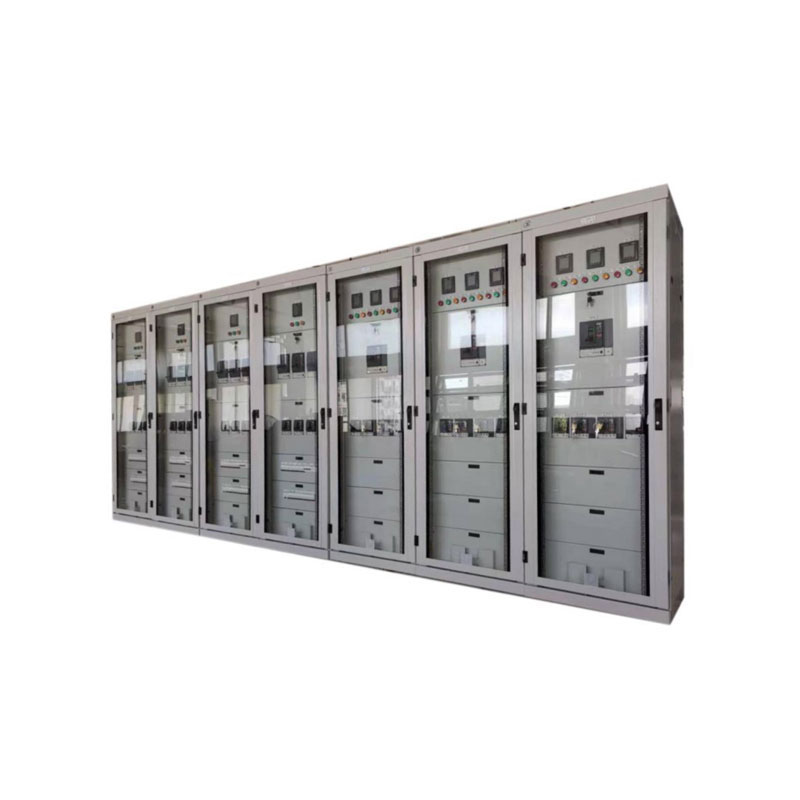

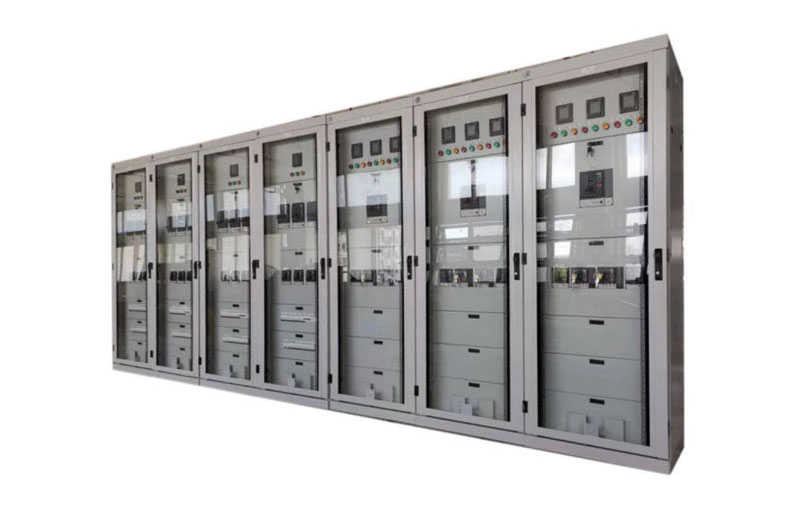

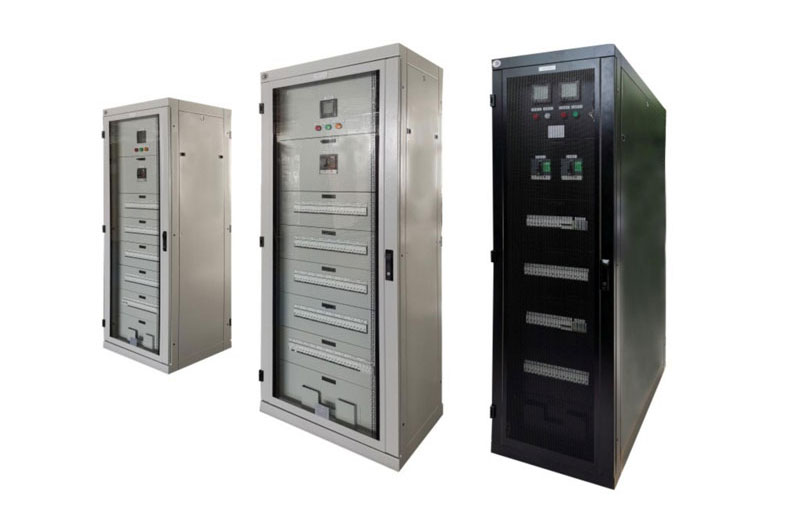

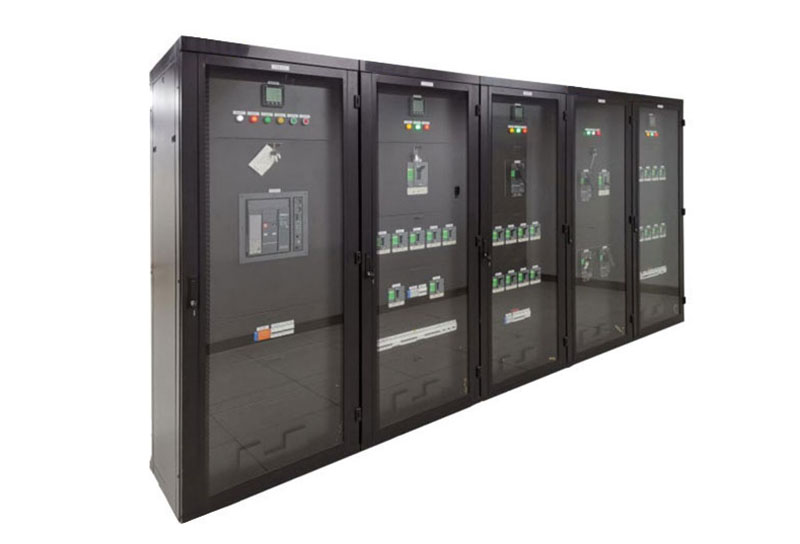

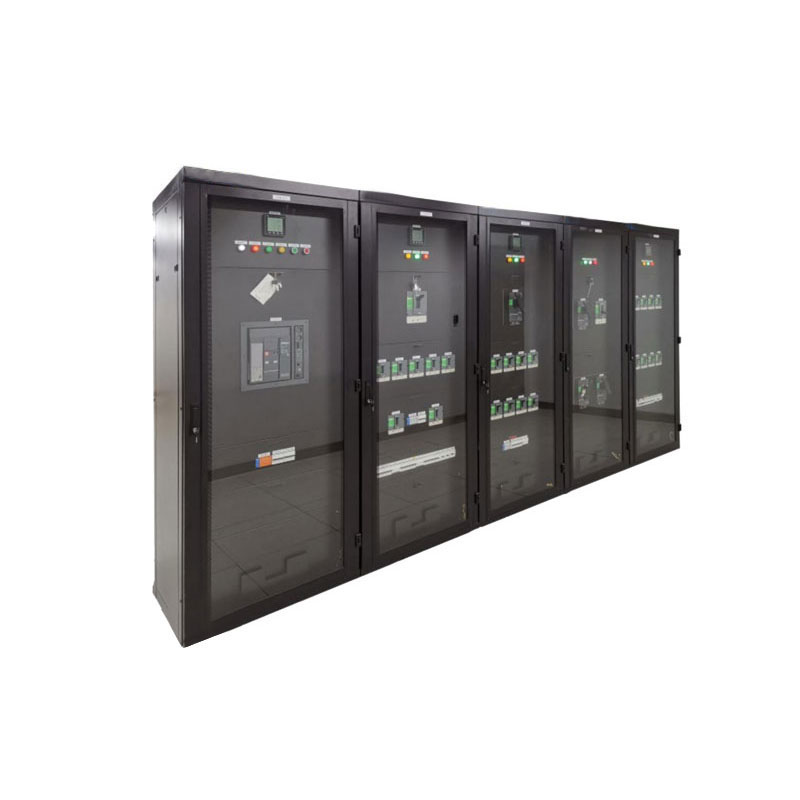

MPM intelligent distribution cabinet

Product Overview

MPM intelligent distribution cabinet is a product with decades of technical research and design experience behind it, fully leveraging the functions of components to meet customer needs for safety, reliability, durability, and aesthetics with guaranteed quality. Choose high-quality cold plate or aluminum zinc coated plate materials with national standards of 1.5-2mm. Electrostatic spraying can be applied in any national standard color according to user requirements. High processing accuracy, good anti-corrosion performance, and sturdy structure. The components inside the cabinet are layered and installed in zones, with only the operating handle exposed. The identification is clear and the grounding is good. It can effectively prevent human contact with live parts during operation and has high safety. The outer door of the cabinet is a locked tempered glass door or a mesh door, which can be opened flexibly with an angle of ≥180°. It can visually observe the indication of the instruments and the status of the switches inside the cabinet, and prevent accidental operation by unrelated personnel.

The structural dimensions of the cabinet are standard modules, and the functional units have good interchangeability. The installation position of components can be adjusted arbitrarily, making it convenient for functional expansion. The side and back panels of the cabinet can be easily disassembled for maintenance and repair. The overall size of the cabinet can be customized according to the requirements of the installation site. The cabinet can be installed independently or as a complete set, providing customized distribution power system solutions, widely applicable in industries such as industry and data centers.

Product features

The MPM intelligent distribution cabinet adopts high-precision data acquisition equipment, which can accurately measure various parameters of the distribution system, including incoming voltage, current, apparent power, active power, reactive power, active energy, reactive energy, power frequency, power factor, harmonics, incoming switch status, lightning arrester status, etc.; and the voltage, current, load percentage, active power, reactive power, active energy (true effective value), reactive energy (true effective value), switch state, and shunt harmonics of the branch circuit. Comprehensive fault warning and alarm function, capable of achieving overvoltage, undervoltage, overcurrent, frequency limit exceeding of the main incoming line and branch, as well as disconnection or fault alarm of the main incoming line switch, lightning arrester and branch switch.
